16-port SOHO Gigabit switch, VLAN, Plug and Play
Live-16GTM
Designed as plug-and-play unmanaged Gigabit switch, the price of AirLive Live-16GTM switch is very affordable.
Moreover, it provides additional and useful functions such as Port Isolation/VLAN Security and Flow Control that
you can set easily by its DIP switch. The Gigabit switch is easy to manage and maintain with its fan less design
and desktop size, the product can be widely used in home, SOHO office, or as client switch for SMB.
• 16-port, each port delivers Gigabit high speed
• Port Isolation/VLAN Mode: Enhanced Security
• Flow Control
• Setting easily by hardware DIP switch
• Surge Protection; ESD Protection
Description
Hardware
• Device Interface:
16 x 10/100/1000Mbps RJ45, Auto MDI/MDI-X
• Standard
IEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3x
• LED Indicators:
PWR (power supply), Link (Network Link)
• Lighting Surge Protection:
IEC61000-4-2 (ESD), IEC61000-4-5(Surge)
Power:CM± 4kV/DM± 2kV; Port: ± 4kV , ESD: ± 8kV
Contact discharge, ± 15kV Air discharge
• Mechanical
Metal
Switch Architecture | Performance
• Switching architecture: Store and Forward
Switch Capacity: Back-plan up to 32Gbps
Pack forward rate; 23.88Mpps
MAC Address: 8K
Jumbo Frame: 10K
Transfer mode: Store and forward
DIP Switch Control
• Standard: Normal mode, all port can
communicate with each other, the transmission
distance is within 100m, the transmission rate is
10M/100/1000M adaptive.
• Port Isolation/VLAN: Port isolation mode. In this
mode ports (1~14) cannot communicate with each
other and can only communicate with the UP-Link
port 15/16.
• Flow Control: This is a Flow Control switch. It is
only used when network congestion occurs, and
after the blocking occurs, the peer device sends a
packet, and the other device will reduce the
transmission rate.
• Note: Port Isolation and Network Flow Control
mode cannot be used at the same time
Power Supply
• Power Supply: AC 100~240V
• Power Consumption: Max power consumption
<9.26W
Environment
• Operating Temperature: 0°C~+40°C
• Storage Temperature: -40°C~+70°C
• Operating Humidity: 10%~90%, non-condensing
• Storage Humidity: 5%~90%, non-condensing
Standard package of switch
• Product size:
27 x 18.1x 4.4 cm(L*W*H)
• Package size:
28.6 x 23.2 x 5.1 cm(L*W*H)
• Product Weight/Package Weight
G.W:1.42kg
• Package content:
1 x Switch, 1 x Power Cable
Standard carton package
• Quantity: 12 pcs / 1 carton
• Dimensions
• 57 x 29.7 x 31 cm
• Carton Weight
18.5Kgs
Ordering Information
• Model:
Live-16GTM: 16 x 10/100/1000Mbps RJ-45 Switch
• Name:
16-port Gigabit Switch, VLAN, Plug and Play

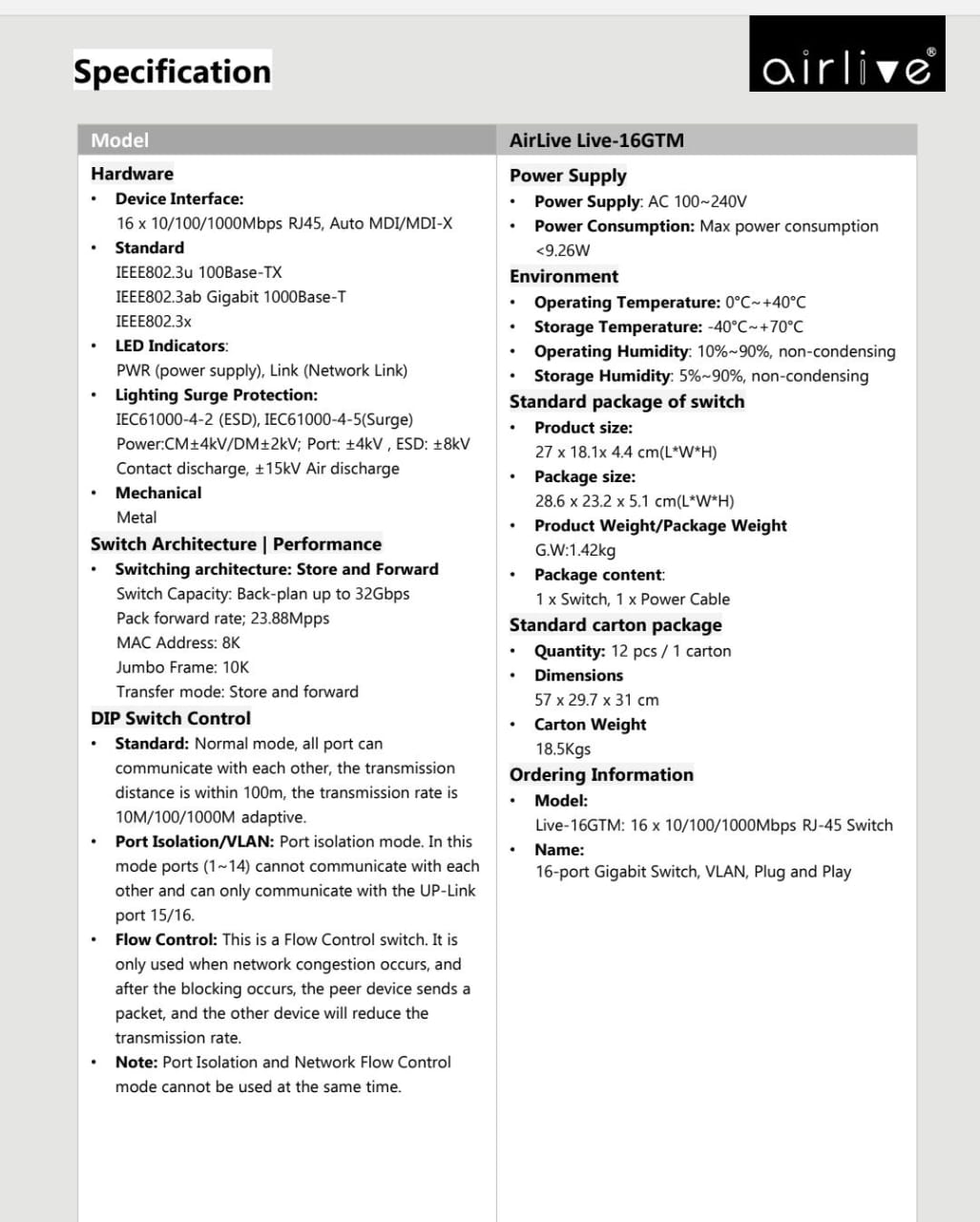

Specifications
