Hardware
• Device Interface:
16 x 10/100/1000Mbps RJ45, Auto MDI/MDI-X
• Standard
IEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3x
• LED Indicators:
PWR (power supply), Link (Network Link)
• Lighting Surge Protection:
IEC61000-4-2 (ESD), IEC61000-4-5(Surge)
Power:CM± 4kV/DM± 2kV; Port: ± 4kV , ESD: ± 8kV
Contact discharge, ± 15kV Air discharge
• Mechanical
Metal, 1U
Switch Architecture | Performance
• Switching architecture: Store and Forward
Switch Capacity: Back-plan up to 32Gbps
Pack forward rate; 23.88Mpps
MAC Address: 8K
Jumbo Frame: 10K
Transfer mode: Store and forward

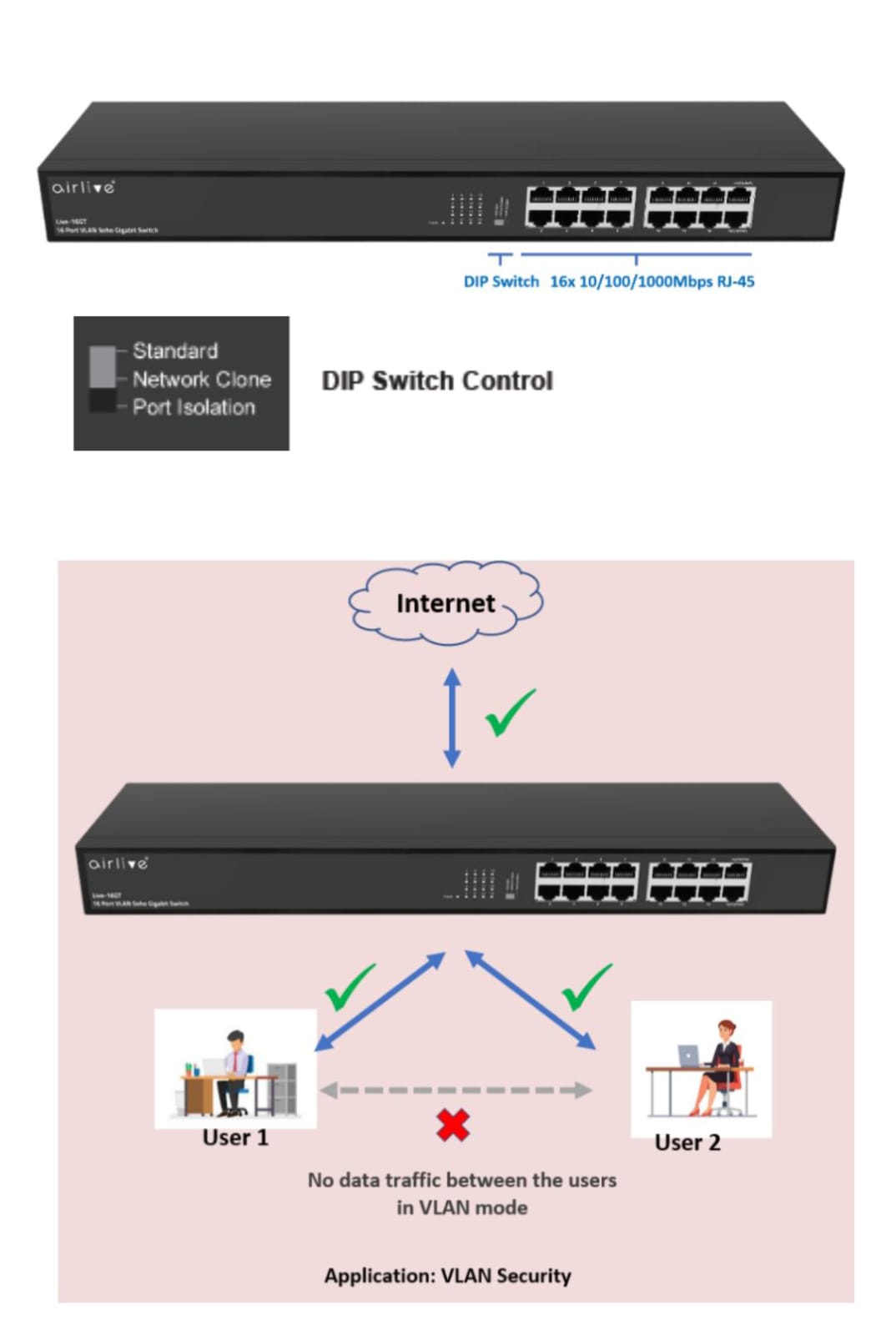

DIP Switch Control
• Port Isolation/VLAN: Port isolation mode. In this
mode ports (1~14) cannot communicate with each
other and can only communicate with the UP-Link
port 15/16.
• Standard: Normal mode, all port can
communicate with each other, the transmission
distance is within 100m, the transmission rate is
10M/100/1000M adaptive.
• Network Clone: The IEEE802.3x flow control
function of all ports is disabled, which is suitable
for some environments that use broadcast or
multicast to transmit data, such as school video
teaching, Internet café, etc..
• Note: Port Isolation and Network Clone mode
cannot be used at the same time

Power Supply
• Power Supply: AC 100~240V
• Power Consumption: Max power consumption
<9.26W
Environment
• Operating Temperature: 0°C~+40°C
• Storage Temperature: -40°C~+70°C
• Operating Humidity: 10%~90%, non-condensing
• Storage Humidity: 5%~90%, non-condensing
Standard package of switch
• Product size:
44x 11 x 4.4 cm(L*W*H)
• Package size:
45.8 x 15.5 x 5.1 cm (L*W*H)
• Product Weight/Package Weight
G.W:1.6kgs
• Package content:
1 x Switch, 1 x Power Cable, 1 x Brackets (pair)
Standard carton package
• Quantity: 10 pcs / 1 carton
• Dimensions
• 47.8 x 33.5 x 28.6 cm
• Carton Weight
17.5Kgs
Ordering Information
• Model:
Live-16GT: 16 x 10/100/1000Mbps RJ-45 Switch
• Name:
16-port Gigabit Switch, VLAN, Plug and Play, 19”
rack-mountable
