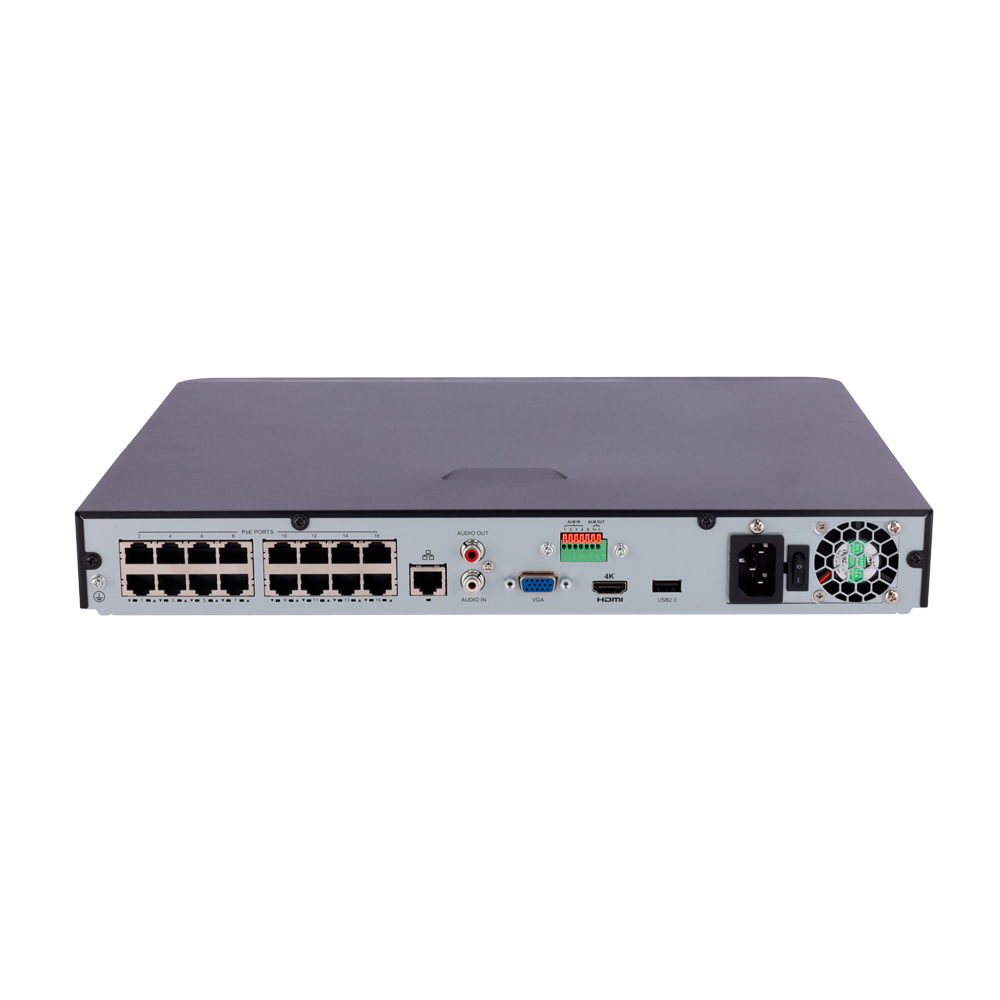

NVR-216S2-P16
NVR-216S2-P16
- Uniarch
- NVR for IP cameras
- 16 CH
- 160 Mbps bandwidth supported
- Maximum resolution 8 Megapixel
- Compression Ultra265/H.265/H.264
- Alarms
- Audio output
- VGA and HDMI 4K output
- 2 x USB 2.0
- 16 PoE ports IEEE802.3af/at
- Mouse
- Space for 2 HDD up to 10 TB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Description
| Brand | Uniarch |
| Inputs for IP cameras | LAN port up to 16 channels |
| IP compatible cameras | UNIVIEW, ONVIF |
| Bidirectional audio | 1 RCA output |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | Ultra265 / H.265 / H.264 |
| Display resolution | 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| PoE | 16 POE ports (IEEE 802.3at, IEEE 802.3af) |
| Alarms | 4 Inputs /1 Relay |
| Total bandwidth | 160 Mbps downstream / 96 Mbps upstream |
| Main Stream recording | 4K / 6Mpx /5Mpx / 4Mpx / 3Mpx / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Decoding | 1x4K @ 30fps / 2x4MPx @ 30fps / 3x3MPx @ 25fps / 4x1080p @ 30fps / 8x720P @ 30fps/ 16xD1 |
| External Backup | USB / HDD USB memory |
| Internal memory | 2 SATA HDD 3.5" of up to 10 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access | Web browser, Smartphone App & PC Software |
| Power | 220V AC / 9W |
| Dimensions / Weight | 53(Al) x 380(An) x 315 (D) mm / 2.4 Kg |
