GeForce RTXâ„¢ 3060 Dual
GeForce RTXâ„¢ 3060 Dual
The GeForce RTX™ 3060 lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.

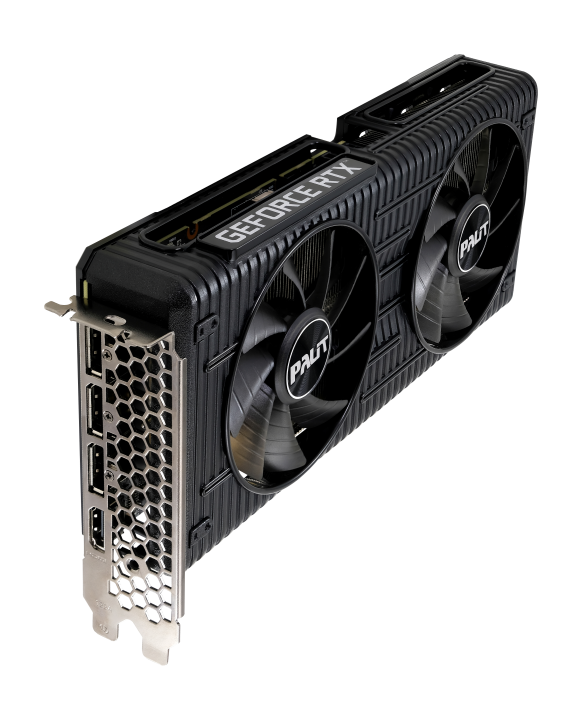

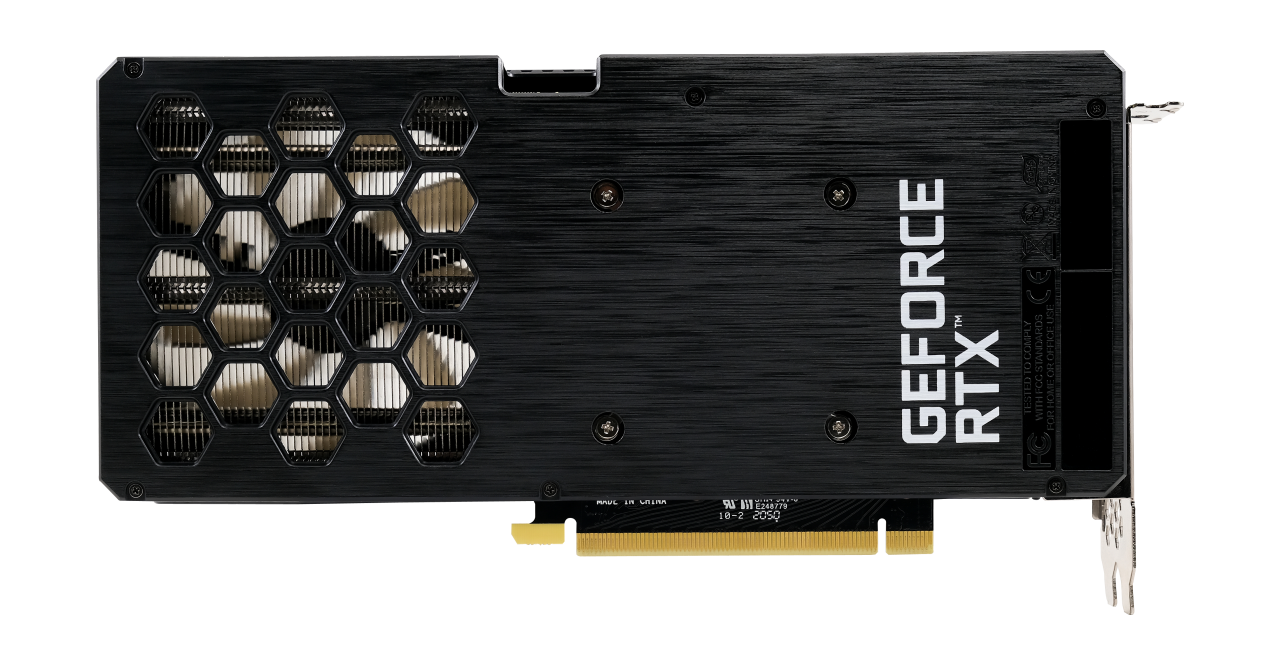

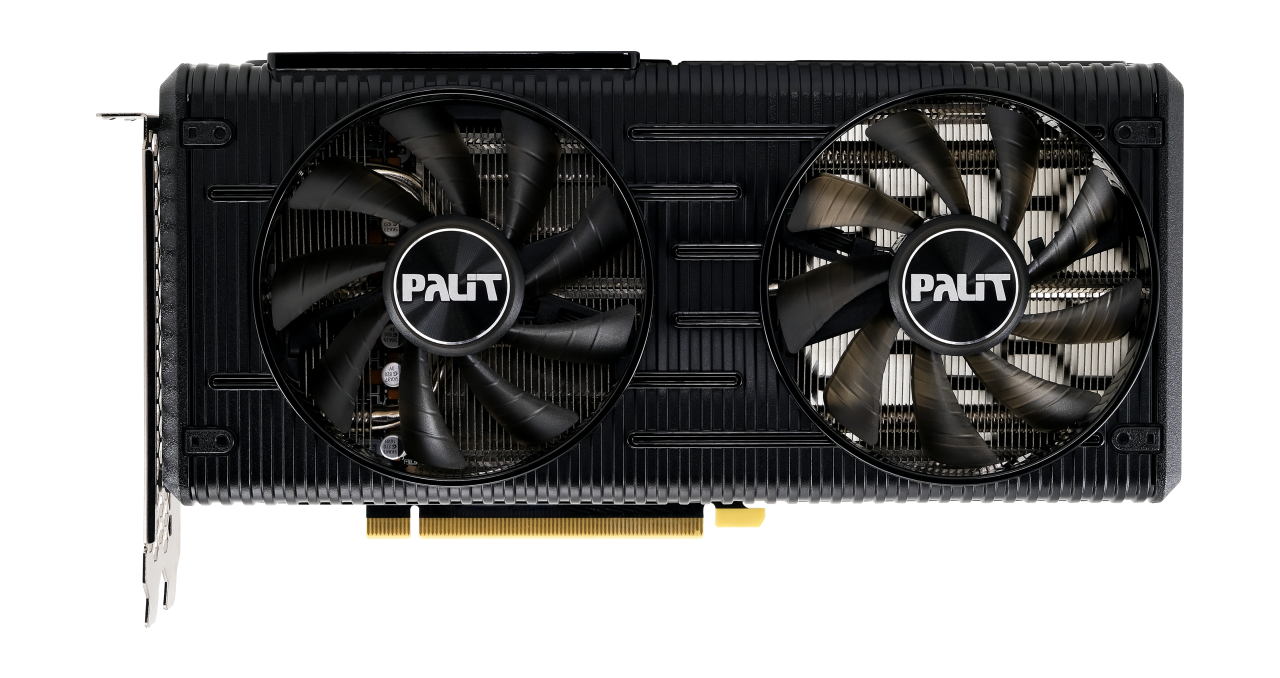

The Palit GeForce RTX™ 3060 Dual Series features two 90mm big fans for efficient cooling performance, and large cut-through area on the back plate for optimized heat ventilation. Customizable RGB lighting is also decorated on the side of the shroud for gamers to enjoy minimalist lighting effects.
Description
| Memory Amount | 12G |
| Memory Interface | 192bit |
| DRAM Type | GDDR6 |
| Graphics Clock | 1320 MHz |
| Boost Clock | 1777 MHz |
| Memory Clock | 15 Gbps |
| CUDA Cores | 3584 |
| Memory Bandwidth (GB/sec) | 360 |
| Microsoft DirectX | Microsoft DirectX® 12 Ultimate |
| OpenGL | 4.6 |
| Bus Support | PCI-E 4.0 |
| HDMI | HDMI 2.1 |
| DisplayPort | DP1.4a x 3 |
| Maximum Digital Resolution | 7680x4320 |
| Height | 2 Slot |
| Board Size | 245x119x40mm |
| Graphics Card Power | 170W |
| Minimum Recommended System Power | 550W |
| Supplementary Power Connectors | 8-pin x 1 |
| Accessory | Manual |
 |
| RGB Lighting |  |
| 0-dB TECH | |
| Copper Base | |
| DrMOS | |
| NVIDIA Ampere Architecture | |
| Ray Tracing Cores | |
| Tensor Cores | |
| NVIDIA DLSS | |
| NVIDIA Adaptive Shading | |
| Real-Time Ray Tracing | |
| NVIDIA® Highlights | |
| NVIDIA Dynamic Super Resolution [DSR] Technology | |
| NVIDIA Adaptive Vertical Sync | |
| NVIDIA CUDA Technology | |
| NVIDIA PhysX-ready | |
| NVIDIA Multi-Projection | |
| Multi Monitor | 4 |
| NVIDIA Ansel | |
| NVIDIA FreeStyle | |
| NVIDIA Vulkan RT API | |
| NVIDIA G-SYNC | |
| NVIDIA GPU Boost | |
| NVIDIA TXAA Technology | |
| NVIDIA MFAA Technology | |
| NVIDIA GameStream Technology | |
| NVIDIA SHIELD ready | |
| NVIDIA ShadowPlay | |
| Virtual Reality ready | |
|
| Product Specifications and Features are for reference only and are subject to change without prior notice. |
Specifications
